Kess V2.23 FW V5.017 with EU Red PCB No Token Limit
£90.00 Price including TAX
KESS V2 V5.017 support more 140 kinds vehicle types or protocols than KESS V4.036. V5.017 is with reset button for free tokens.

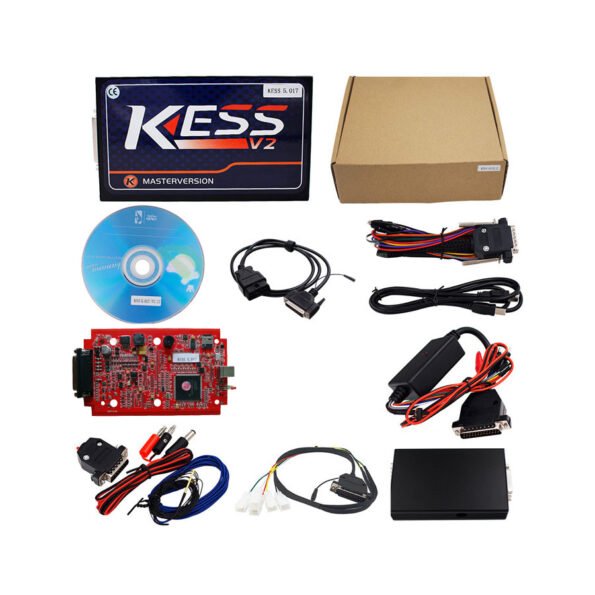

Kess V2.23 FW V5.017 with EU Red PCB No Token Limit Car/Truck
KESS V2 V5.017 support more 140 kinds vehicle types or protocols than KESS V4.036. V5.017 is with reset button for free tokens.
KESS V5.017 EU red PCB Feature :
1.the left upper corner and the lower right corner notch size is not the same
2.Extra buzzer
3.WFs = Infineon, BCR112 NPN Digital Transistor
4.27E = ON Semiconductor NUP2105LT1G
5.6DW = NXP BC817,215 NPN Bipolar Transistor
6.A6c =MMUN2113LT1G / MMUN2113LT3G
7.K5B = BC807-25-7-F PNP Bipolar Transistor
8.Using imported Japanese Murata filter NFE61PT472C1H9L
Language:
English, German, Spanish, Italian, Portuguese, French
Support Computer system:
Works on win XP Win7 32bit Win 8 etc.
Kess V5.017 has several built in features and safeguards including:
1.Check of the battery voltage in real-time
2.Full Recovery function in case of problems
3.Automatic correction of the Checksum, (where available)
4.Boot-Loader mode supported
5.Management of the programming counters
6.ScanTool function to remove DTC
7.Different reading / writing speed options
8.Option to write full file action of the card.
Kess or KTAG?
| Item Name | KESS Red | KTAG Red |
| Version | Software V2.23 Hardware V5.017 |
Software V2.23 Hardware V7.020 |
| read/write ECU way | OBDII | via TRICORE or BDM etc. |
| Main function | ECU remapping | ECU remapping;Fix/repair ECU |
| Vehicle supported | mainly for home cars, trucks | Cars/truck/tractor/motorcycle/Heavy Duty/Boat |
| Tokens | No Token Limitation | No Token Limitation |
| Language | English, German, Spanish, Italian, Portuguese, French | English, German, Spanish, Italian, Portuguese, French |
