BMW ENET Ethernet to OBD Interface Cable E-SYS ICOM Coding F-Series With Software

BMW ENET (Ethernet to OBD) Interface Cable E-SYS ICOM Coding F-Series

BMW ENET (Ethernet to OBD) Interface Cable  Password for BMW_E-SYS_ENET:

V50.2 Extracting passwords: SQnd$CXL  PIN: 2670
V50.3 Extracting passwords: E*G@rqVa  PIN: 2670

BMW ENET (Ethernet to OBD) Interface Cable  Product Introduction:

BMW series single module programming or modules hiding ENET data line
BMW hidden ENET data cable , F series programming cable , the latest ESYS 3.22.5 and V49.4 data.
BMW F series , the new 1 Series, 3 Series, 5 Series, 7 Series , GT, X3, brush hidden upscale programming line goes on sale !
Buy our ENET lines are presented E-SYS 3.225 software installation packages and ETOKEN and PIN.
This product uses the international top super-six production lines , shielding interference, signal transmission intensity , really pure copper wire, green insulation , not comparable to other lines .

BMW ENET (Ethernet to OBD) Interface Cable   Product Features:

One can hide modules or program single module

1. Lock unlock sound confirmation ( to prevent radio interference, add sound to confirm car locked when turn light confirmation inconvenient. This is setup in cic)
2. Can operate the navigation menu including watching dvd when driving( for driving safety. Let the side driver operate the navigation menu )
3. Display engine output and torque meter ( purely fun, look engine output )
4. Cancel confirmation screen big screen boot delay
5. Open the voice recognition function
6. Three kind of bluetooth phone ringtones ( personality only )
7. Increasing the cic memory address to 50
8. The glass automatically rise to the top process is not terminated by the car door ( easy to get off to close the window waiting )
9. The digital speed display ( fun only )
10. Air-conditioned memory of the last off state ( without air conditioning season is more convenient )
11. Indoor cycling memories of the last time the state when engine off
12. A-pillar electric tailgate buttons and remote control a key to close the power tailgate. At any time terminate the reverse operation ( turn off 15 minutes or more reset )
13. Increasing shift paddles
14. The small screen to the large-screen display modify
15. Pdc display vertical and horizontal
16. Disable the seat belt status display – passenger seat
17. Disable the seat belt status display – driver seat
18. Disable seat belt reminder mistake ! The link is invalid. Device – passenger seat
19. Disable seat belt reminder – driving position
20. Disabled unfasten their seat belts voice prompts – passenger seat
21. Disabled unfasten their seat belts voice prompts – driving position
22. Intersection vehicle high beam automatic control ( no condition tested. Do not know if it is valid )
23. Angel eyes open and cancel functions
24 turn off the engine start-stop function turned on by default
25 gps time synchronization
26 Foot open the back cover
27 Ds show s1-s7 selection
28 Active sports gearbox program sport +
29 Single microphone settings
30 Engine off automatically unlock
31 Internet applications
32 Armrest usb playback video
33 The maximum distance disable front camera view
34 The maximum distance to disable the rear camera view
35 Maximum speed disable front camera view
36 The maximum speed to disable the rear camera view

How to install E-sys & EDIABAS, EST token, paszdata for BMW F series coding

This is the instruction on how to install E-sys & EDIABAS, EST token, paszdata for BMW F series coding with ENET (Ethernet to OBD) Interface

—————————————————————————————————-
INSTALL E-SYS & EDIABAS
—————————————————————————————————-
01) Run “E-sysE-Sys_Setup_3_22_5_b34057.exe” to install program to default location “C:EC-AppsESG” (i.e. “C:EC-AppsESGE-Sys”)

02) During E-Sys installation, when prompted change the default Data Path from “C:Data” to “C:ESysData”.

03) Copy “EDIABAS” folder to the root of “C:” (i.e. “C:EDIABAS”)

04) Run “C:EDIABASHardwareEdiabas-KonfiguratorEdiabas-Konfigurator.exe” and make sure “Interface:” is set to “INTERFACE=ENET”.

(It should already be set, but check anyway – if you need to change it, use the drop-down list and select “INTERFACE=ENET” and then “Andern” and then “Ende”.)

—————————————————————————————————-
INSTALL E-SYS EST TOKEN (NOT INCLUDED)
—————————————————————————————————
-05) Create subfolder “E-Sys EST” under “C:ESysData” (i.e. “C:ESysDataE-Sys EST”)

06) Copy EST Token File (e.g. “Code Away.EST”) to “E-Sys EST” folder (i.e. “C:ESysDataE-Sys ESTCode Away.EST”)

*NOTE: E-SYS EST TOKEN IS NOT INCLUDED AND MUST BE OBTAINED SEPARATELY.

—————————————————————————————————-
INSTALL PSdZData (NOT INCLUDED)
—————————————————————————————————-
07) If existing “psdzdata” folder exists in “C:ESysData” (i.e. “C:ESysDatapsdzdata”) delete it.

08) Copy downloaded “psdzdata” folder to “C:ESysData” (i.e. “C:ESysDatapsdzdata”)

09) Make sure that there is a “Dist” folder in each of the Chassis folders (F01/F10/F20/F25/K001/RR01) etc.(e.g. “C:ESysDatapsdzdatamainseriesF010F010_12_03_511odxdist”)

(It should already be set, but check anyway – if not there – create empty “Dist” folders for each chassis folder)

*NOTE: E-SYS PSdZData IS NOT INCLUDED AND MUST BE OBTAINED SEPARATELY.

E-sys setup and copy TOKEN anywhere

You can copy the Token anywhere, but you have to go into Bmw E-Sys settings and point to it.
Here are the detailed instructions I wrote (Note Step 9):

01) Run “E-Sys_Setup.exe” to install program to “C:EC-AppsESGE-SysE-Sys.exe” (Install Password is “lo8F3lsVVg” if prompted)

02) Copy “EDIABAS” folder to “C:EDIABAS”

03) Make sure “C:EDIABASBinEDIABAS.INI” is set to Interface = ENET
(should already be set, but check anyway)

04) Copy “e-sys est” folder to “C:ESysDatae-sys est”

05) Copy all “psdzdata” subfolders (all 7 Folders) to “C:ESysData psdzdatafolders_1-7”

06) Make sure that there is a “Dist” folder in each of the Chassis (F01/F10/F25) folders etc.
(e.g. “C:ESysDatapsdzdatamainseriesF010F010_12_03_5 11odxdist”)
(should already be set, but check anyway – if not there – create empty “Dist” folders)

07) Turn Car’s Auxillary Power On (Engine Off) and make connection to car with OBDII-Enet Interface Cable
(Wait a few minutes until the network adapter icon shows a Connection with the yellow exclamation point over it)

08) Launch “C:EDIABASHardwareENETZGW_SEARCH.exe” to verify cable and connection are working
(IP Address, MAC Address, & VIN will be displayed verifying actual communication to the car)
(ZGW_SEARCH.exe works intermittently on 64-Bit Windows – Not necessarily a problem if the ZGW_SEARCH window is blank,
so long as the computer’s wired network adapter shows an IP Address assigned to the computer from the car)

09) Run “C:EC-AppsESGE-SysE-Sys.exe” (It will take E-Sys a while to write the log file) and Under Options, Settings:
On the ODX Tab, set the ODX Rule Path to “C:ESysDataRules”
On the EST Tab, set the Developer-Soft-Token EST Path to “C:ESysDatae-sys estCode Away.est”
On the PROGRAM TAB, set the Directories – Data Path to C:ESysData

10) Hit the Connect Button on E-Sys

Select Target Vehicle (e.g. TargetSelector:Project=F010-12-03-511m VehicleInfo=F010)

11) Select Connection via VIN, and click Connect
(Window should pop up confirming successful connection)
(The program will remember the “connection via VIN” for future connections)

12) After connecting to the car, each time you launch E-Sys, and Read / Code an ECU the first time, you will need the E-Sys PIN, which is 2690.

Package List:

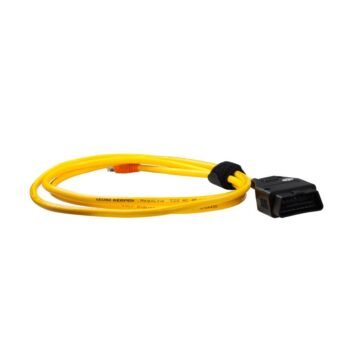

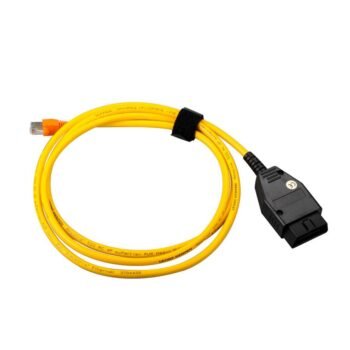

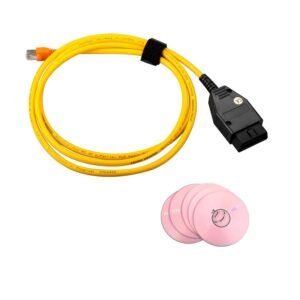

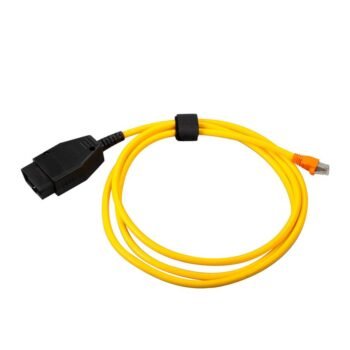

1pc x BMW ENET (Ethernet to OBD) Interface Cable

BMW ENET Ethernet to OBD Interface Cable E-SYS ICOM Coding F-Series With Software

BMW ENET (Ethernet to OBD) Interface Cable BMW series single module programming or modules hiding ENET data line BMW hidden ENET data cable , F series programming cable , the latest ESYS 3.22.5 and V49.4 data.

Product SKU: 11295

Product Brand: ENET

Product Currency: GBP

Product Price: 30.00

Product In-Stock: InStock

Editor's Rating:
5
