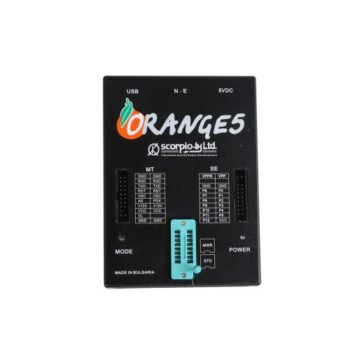

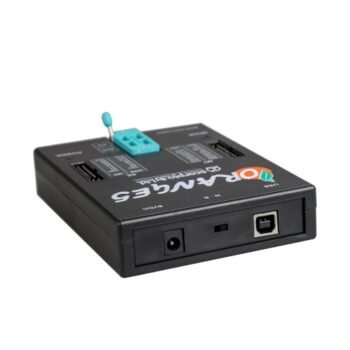

OEM Orange 5 Professional Programming Device Main Unit

OEM Orange 5 Professional Programming Device With Full Packet Hardware

+ Enhanced Function Software

OEM Orange 5 Professional programming is a professional device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers’ requirements to read/write algorithms.

Software Version: V1.34

Language:  English and Russian

Systems: XP WIN7 WIN8

Warning:
1. This is OEM Orange5 Main Unit only without full adapter.
2. The default software version of OEM Orange5 is V1.34, please never try to use
higher version or update online, or device will get locked, and needs to pay 25GBP to unlock.

Orange 5 Programmer Software License:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3  UART
NEC V850E2 NEW

Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V),
additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is enclosed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1] – Installation and Work with Orange-5 under Windows 7 and Windows 8.1

CnCterm – Terminal program for work with COM ports.

Orange 5 Programmer Feature:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
“Echo” mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
Program doesn’t need to be installed
Supports Orange5 programmer in emulation mode.

OEM Orange 5 Professional programming Automotive Chip List:
Immo HPX 9V0
Audi,BMW,Chevrolet,Chrysler,Citroen,DAF,Dodge,Fiat,Ford,Great Wall,Hyundai,Honda,Jeep,KIA,Mercedes Benz
,Nissan,Opel,Peugeot,Renault,Rover,Seat,Skoda,SsangYong,Suzuki,Toyota,VW.

EEPROM
MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig
,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,Mitsubishi,Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung
,Seiko,Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,Renesas,Samsung
,SiLabs,ST,TI,Motorola, Freescale,MC68HC11,MC68HC12

* – Program with Adapter.
Licenses for M08V, TMS370, Renesas V850 are optional.

For detail chip type model list,please check the   oem-orange5-programming-basic-chip-list.pdf

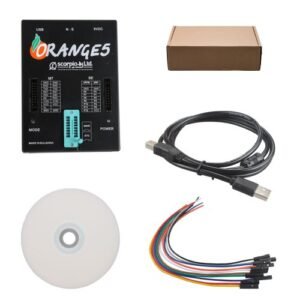

OEM Orange 5 Professional programming Package List:
1pc x Orange 5 Programmer
1pc x USB cable
10pcs x In circuit wire
1pc x DVD

OEM Orange 5 Professional Programming Device Main Unit

OEM Orange 5 Professional programming is a professional device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols.

Product SKU: 11321

Product Brand: Orange

Product Currency: GBP

Product Price: 110.00

Product In-Stock: InStock
