SVCI J2534 Diagnostic Tool for Ford & Mazda IDS V113 Support Online Module Programming

SVCI J2534 Diagnostic Tool for Ford & Mazda IDS V113 Support Online Module Programming

SVCI J2534 Diagnostic Tool is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as Pass Through device for many dealer level diagnostic software.And it can be used as a ELM327 device also,support most of ELM327 software.

Top 7 Reasons to Get SVCI J2534 Diagnostic Tool:
1. High speed host communication.(3 Mbps)
2. Stable host communication.(with RTS/CTS flow control)
3. Automatically register software and no virtual machine needed.
4. Online software update and keep software latest always.
5. Online firmware update.
6. USB 802.11 selectable host communication.
7. Support ELM327 software by one device.

SVCI J2534 Diagnostic Tool Support Software:
J2534 Ford IDS V113
Mazda IDS V113
Toyota TIS V13.00.022
Land Rover/Jaguar SDD2 V154.01

SVCI J2534 Diagnostic Tool Support ELM327 Software:
ELMconfig
Forscan
FOCCCUS
FF2

SVCI J2534 Comparison Table with other Devices
SVCI J2534 VS. Ford/Mazda IDS:

SVCI J2534 VS. Toyota TIS:

SVCI J2534 Support Protocols:
ISO9141 IS014230
J1850 VPW
J1850 PWM(Ford SCP)
IS011898 HS(500K BPS)
IS011898 MS(125K BPS)
IS015765 HS(500K BPS)
IS015765 MS(125K BPS)
FEPS(Flash EEPROM Program Signal)
KWP1281
J2819(TP2.0)

SVCI J2534 Specifications:
L*W*H:                                  76mm*54mm*22mm
Environmental:                      -20℃-45℃(-4℉-113℉) at 15% to 85%
Voltage Requirements:         8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing
Vehicle Connection:              Molded DLC3(OBDII-16)

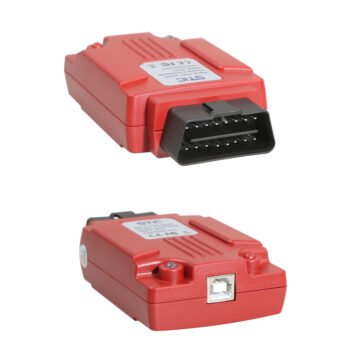

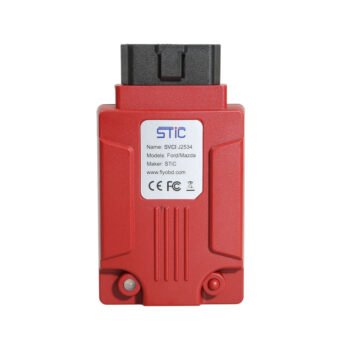

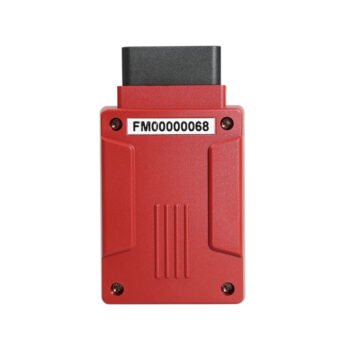

SVCI J2534 Appearance Details:

LED:
Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly

PS Push Switch:
Pressed: works as ELM327 mode Released: works as J2534 mode

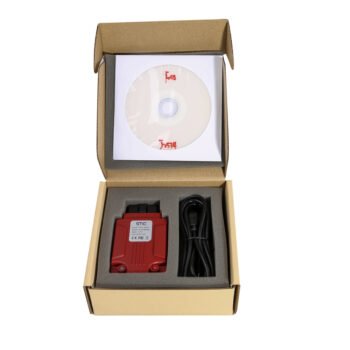

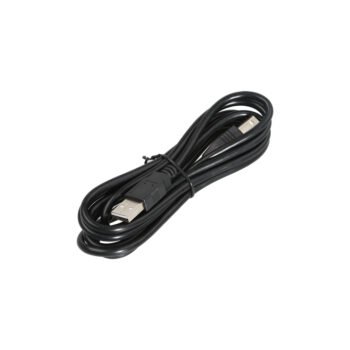

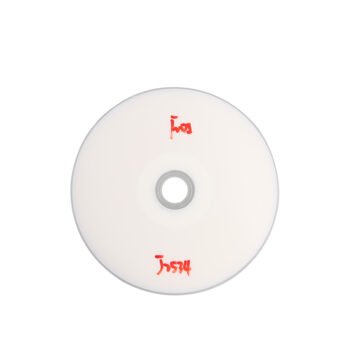

Package List:
1set x SVCI J2534

SVCI J2534 Diagnostic Tool for Ford & Mazda IDS V113 Support Online Module Programming

SVCI J2534 Diagnostic Tool is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as Pass Through device for many dealer level diagnostic software.

Product SKU: 11236

Product Brand: SVCI

Product Currency: GBP

Product Price: 100.00

Product In-Stock: InStock
