Honda Diagnostic System HDS 2.027V Double Board Best Quality

Honda Diagnostic System HDS 2.027V Double Board

Software Version: 2.027

It is different from CTP016-01, this one is double board. CTP016-01 is single board.

Hardware and Software Requirements:

Hard disk drive with at least 400MB of free space

CD-ROM drive (if a high-speed Internet connection is not available)

Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)

Internet connection (high-speed connection recommended)

Honda Diagnostic System Functions:

1.Functions Supported by Honda/Acura Protocols

1) Reading and decoding fault codes from control blocks memory

2) Deleting fault codes

3) Displays system current parameters in digital form

4) Displays system? current parameters in graphical form

5) Combined displaying of data

6) Management of executive devices

7) Logs keeping – writing and keeping of digital parameters in memory

8) Special functions – changing of permissible settings of blocks, programming etc.

2.Functions Supported by OBD-II Protocols

1) Mode $01 – Displays system current parameters in digital form (up to 8 parameters at once);

2) Mode $02 – Displays parameters of freeze frame;

3) Mode $03 – Reading and decoding of fault codes from control block? memory;

4) Mode $04 – Deleting of fault codes (memory clearing);

5) Mode $05 – Displays results of oxygen sensors;

6) Mode $06 – Displays results of changeably controlled systems and components;

7) Mode $07 – Displays results of constantly controlled systems and components;

8) Mode $08 – Management of executive devices;

9) Mode $09 – Displays car identification info.

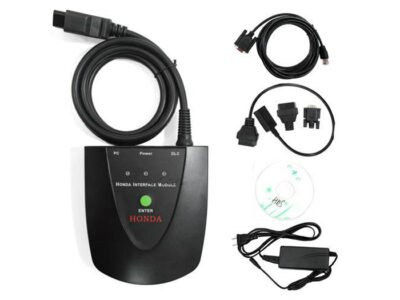

Package List: Of Honda Diagnostic System

1pc x HIM with OBDII Cable

1pc x DVD

1pc x 3 Pin Cable

1pc x RS232 Cable

Honda Diagnostic System HDS 2.027V Double Board Best Quality

HIM (Honda Diagnostic System & Acura Diagnostic System)is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of Honda/ACURA from year 1992 to 2011. Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.

Product SKU: 11501

Product Brand: HDS

Product Currency: GBP

Product Price: 140.00

Product In-Stock: InStock
